Edge deployment

Generated, not typed

Computed by scripts/make_results_docs.py from results/edge_benchmark.json (make edge, then scripts/profile_onnx_ops.py).

Protocol

  • Machine: Apple M5 (10 cores), macOS-26.6.2-arm64-arm-64bit, PyTorch 2.14.1, ONNX Runtime 1.31.0.
  • Frames: 150 real MOT17 frames (25 from each of six 1080p sequences), identical for every configuration.
  • Isolation: every configuration runs in its own process (emot.export.edge_worker), so latency, peak memory and accuracy belong to exactly one configuration.
  • Accuracy is measured, not proxied: every row is scored with COCO-style AP against ground truth.
  • Input: 16:9 rectangular static shape (384x640 for the default size), the shape PyTorch's own rectangular inference uses -- see the correction below.
  • Calibration for static INT8 uses 66 frames that are disjoint from (and at least 4 frames away from) every evaluation frame.
  • Not measured: power (needs root), and any device other than this laptop. Treat absolute numbers as this machine's, ratios as hypotheses for yours.

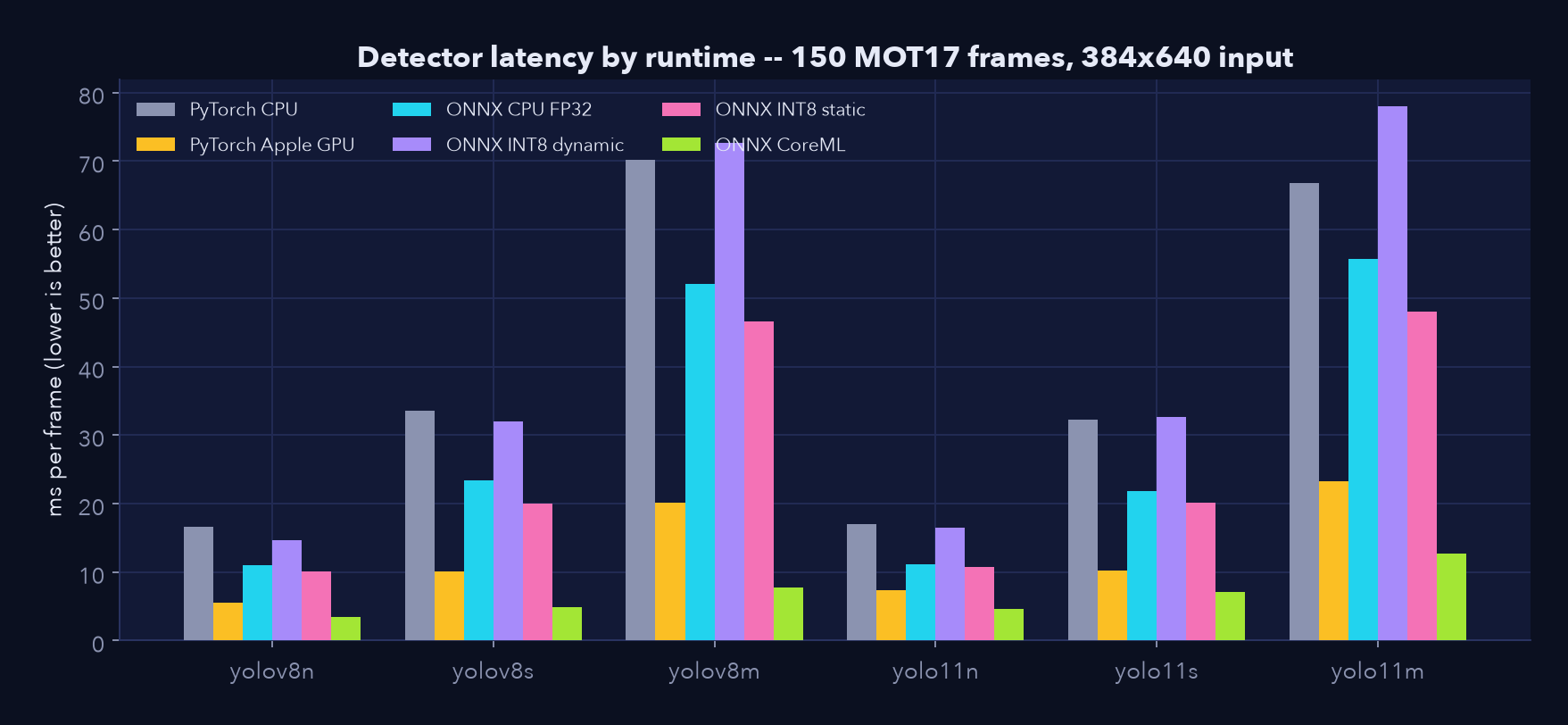

Latency

The correction: the first benchmark compared different input shapes

The original version of this project reported that ONNX was slower than PyTorch (about 1.5-2x) and that INT8 did not help. Re-examining it found a methodology error: PyTorch inference through Ultralytics pads a 16:9 frame only to the stride grid (384x640), whereas the ONNX export used a 640x640 square -- 1.67x more pixels for the same image. With matched shapes, ONNX Runtime on CPU is 1.41x faster than PyTorch on average. The lesson is general: match the exported shape to the camera before comparing runtimes. (The old benchmark script was removed; see Experiments.)

Results per backbone

yolo11n

Runtime Size (MB) Mean ms p95 ms FPS Speed-up vs PyTorch CPU Peak RAM (MB) AP50 Δ AP50 vs FP32
PyTorch CPU 5.4 17.0 17.3 59 1.00x 470 0.543 +0.0 pt
PyTorch Apple GPU (MPS) 5.4 7.4 11.9 135 2.29x 622 0.543 +0.0 pt
ONNX Runtime CPU FP32 10.2 11.2 12.4 89 1.52x 453 0.543 +0.0 pt
ONNX INT8 dynamic 2.8 16.5 18.4 60 1.03x 420 0.540 -0.3 pt
ONNX INT8 static (QDQ) 3.1 10.8 13.1 92 1.57x 398 0.529 -1.4 pt
ONNX INT8 static, FP32 head 3.2 11.3 13.8 89 1.51x 396 0.530 -1.2 pt
ONNX CoreML (ANE/GPU) 10.2 4.6 4.8 217 3.69x 435 0.542 -0.1 pt

yolo11s

Runtime Size (MB) Mean ms p95 ms FPS Speed-up vs PyTorch CPU Peak RAM (MB) AP50 Δ AP50 vs FP32
PyTorch CPU 18.4 32.2 32.9 31 1.00x 557 0.598 +0.0 pt
PyTorch Apple GPU (MPS) 18.4 10.2 12.4 98 3.16x 661 0.598 +0.0 pt
ONNX Runtime CPU FP32 36.2 21.9 23.4 46 1.47x 563 0.598 +0.0 pt
ONNX INT8 dynamic 9.4 32.7 34.7 31 0.99x 468 0.598 +0.1 pt
ONNX INT8 static (QDQ) 9.7 20.2 22.2 50 1.60x 416 0.608 +1.1 pt
ONNX INT8 static, FP32 head 9.8 20.4 22.6 49 1.58x 415 0.609 +1.2 pt
ONNX CoreML (ANE/GPU) 36.2 7.1 7.7 141 4.54x 527 0.599 +0.2 pt

yolo11m

Runtime Size (MB) Mean ms p95 ms FPS Speed-up vs PyTorch CPU Peak RAM (MB) AP50 Δ AP50 vs FP32
PyTorch CPU 38.8 66.8 67.7 15 1.00x 697 0.592 +0.0 pt
PyTorch Apple GPU (MPS) 38.8 23.3 23.7 43 2.87x 756 0.592 +0.0 pt
ONNX Runtime CPU FP32 76.9 55.8 59.0 18 1.20x 728 0.592 +0.0 pt
ONNX INT8 dynamic 19.6 78.0 80.3 13 0.86x 573 0.586 -0.6 pt
ONNX INT8 static (QDQ) 20.1 48.0 50.5 21 1.39x 448 0.586 -0.6 pt
ONNX INT8 static, FP32 head 20.3 48.7 51.6 21 1.37x 454 0.594 +0.2 pt
ONNX CoreML (ANE/GPU) 76.9 12.6 13.6 79 5.28x 672 0.591 -0.1 pt

Remaining backbones (YOLOv8 n/s/m) are in results/edge_benchmark.json and the web app's Edge Lab.

What worked, what did not

  • ONNX Runtime beats PyTorch on CPU (1.41x mean) at identical accuracy (box-level parity with the PyTorch detector, IoU > 0.999).
  • The accelerator is the biggest win: CoreML (ANE/GPU) is 5.7x faster than PyTorch CPU on average (3.4-12.6 ms across backbones) and also beats PyTorch-on-MPS (3.0x), again at the same AP.
  • Dynamic INT8 is slower than FP32 (1.00x vs PyTorch CPU; FP32 ONNX is 1.41x): ONNX Runtime's dynamic path uses ConvInteger, which has no optimised kernel here.
  • Static INT8 is a size win and a small, thread-dependent speed win: 3.7x smaller weights, mean AP50 change -0.6 pt, latency 1.11x of FP32 with all cores -- but slower on a single thread (below).
  • Memory: INT8 lowers peak RAM (419 MB vs 580 MB mean), which matters more than latency on small devices.

Why quantisation behaves like this: operator profile

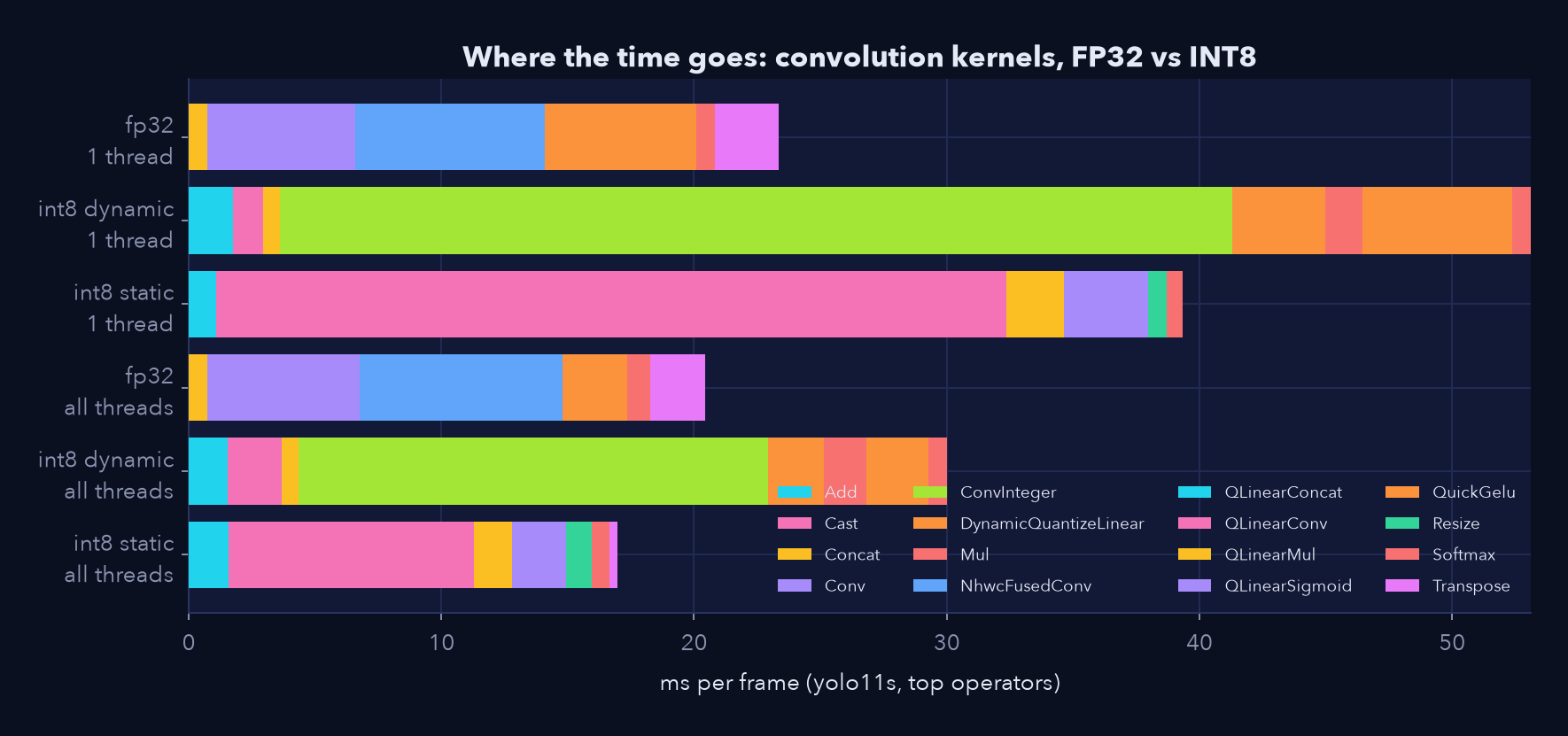

Profile

Top operators, milliseconds per frame (yolo11s):

Variant Top operators (ms)
FP32, 1 thread NhwcFusedConv 7.5, QuickGelu 6.0, Conv 5.9
INT8 dynamic, 1 thread ConvInteger 37.7, QuickGelu 5.9, DynamicQuantizeLinear 3.7
INT8 static, 1 thread QLinearConv 31.3, QLinearSigmoid 3.3, QLinearMul 2.3
FP32, all threads NhwcFusedConv 8.0, Conv 6.0, QuickGelu 2.6
INT8 static, all threads QLinearConv 9.7, QLinearSigmoid 2.2, QLinearConcat 1.6

Reading it: dynamic INT8 replaces convolutions with ConvInteger, far slower than the FP32 kernels; static INT8 uses QLinearConv, which on one core is slower than FP32 but scales with threads while FP32 does not. A plausible reading (a hypothesis, not something this benchmark isolates) is that the FP32 path already runs on a dedicated matrix unit that extra threads do not help, whereas the integer kernels are SIMD-bound and parallelise.

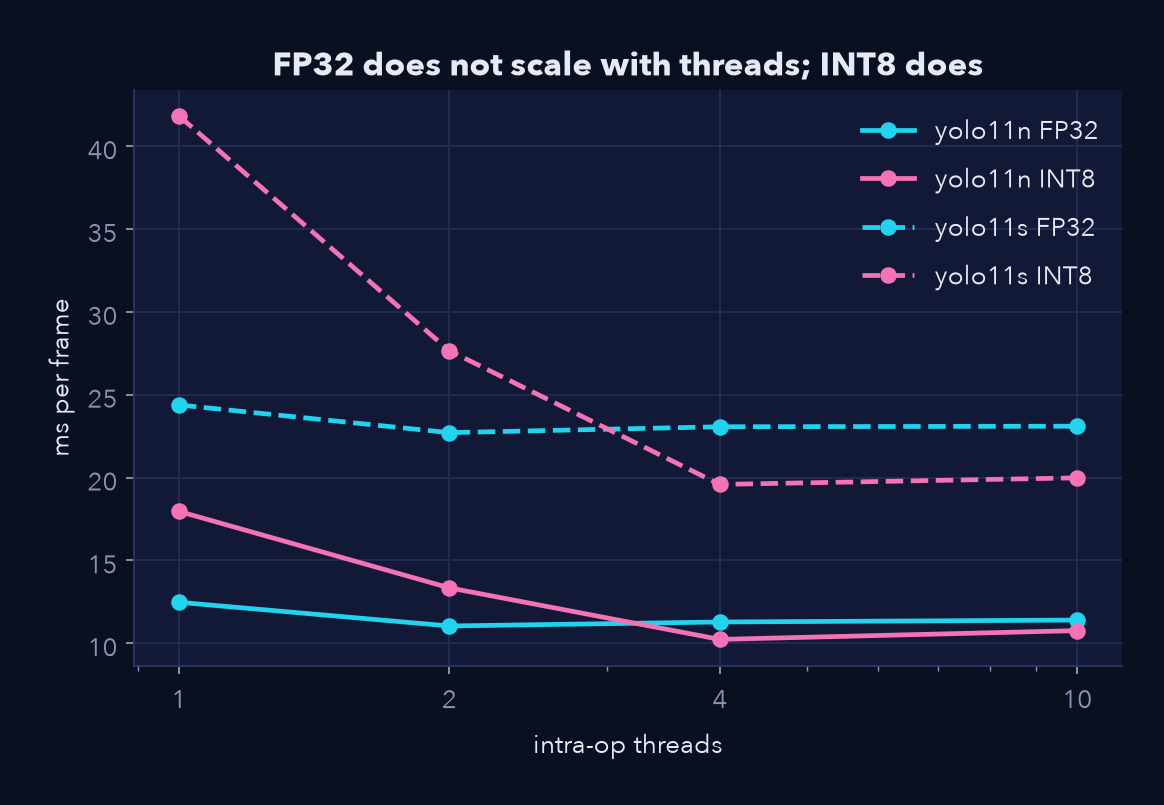

Threads (a constrained-CPU proxy)

Threads

1 thread 2 threads 4 threads 10 threads
yolo11n FP32 12.5 11.0 11.3 11.4
yolo11n INT8 static 18.0 13.3 10.2 10.8
yolo11s FP32 24.4 22.7 23.1 23.1
yolo11s INT8 static 41.8 27.7 19.6 20.0

Two bugs worth knowing about

  1. Static INT8 first scored AP = 0.0. The Detect head's decode graph concatenates pixel-scale box coordinates (up to ~640) with probabilities in [0, 1]; a single 8-bit scale per tensor flattens every score to zero. Fix: keep the decode nodes in float (_decode_nodes in emot/export/onnx_export.py) and calibrate with MinMax (percentile clipping scored 0.0 AP even with float decode in the experiment that found this).
  2. OpenCV's NMS top_k truncates candidates before suppression, unlike Ultralytics (suppress, then cap survivors at max_det). Found by the cross-language parity fixtures for the browser port; fixed in emot.detection.onnx_detector.

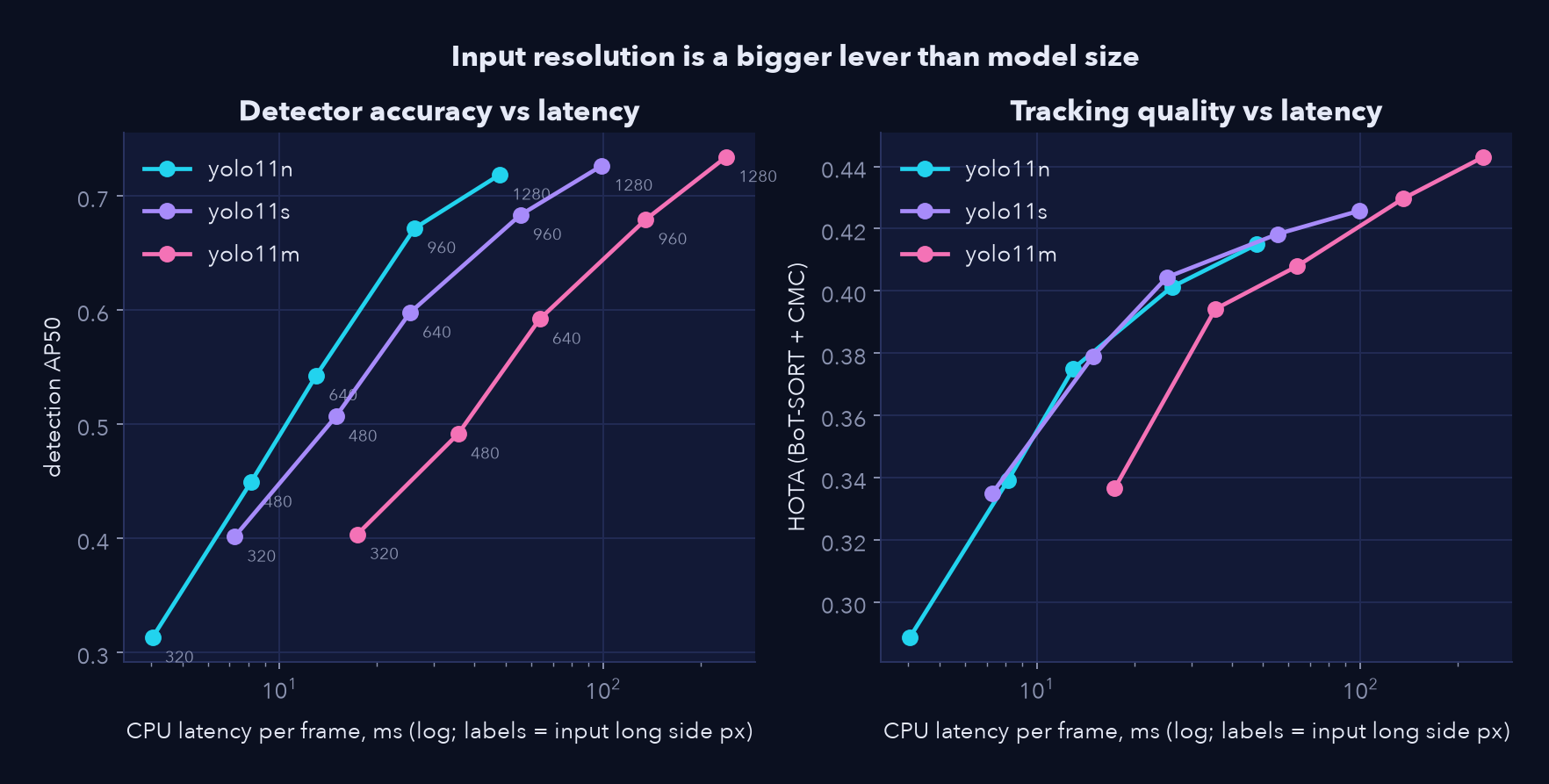

Input resolution is the biggest lever

Resolution

Backbone Input long side (px) CPU ms AP50 Recall@0.5
yolo11m 320 17.4 0.404 0.432
yolo11m 480 35.6 0.492 0.533
yolo11m 640 63.7 0.592 0.657
yolo11m 960 135.5 0.679 0.755
yolo11m 1280 240.1 0.734 0.817
yolo11n 320 4.0 0.313 0.345
yolo11n 480 8.2 0.449 0.498
yolo11n 640 13.0 0.543 0.604
yolo11n 960 26.1 0.672 0.744
yolo11n 1280 47.9 0.718 0.791
yolo11s 320 7.3 0.401 0.441
yolo11s 480 14.9 0.507 0.570
yolo11s 640 25.3 0.598 0.675
yolo11s 960 55.5 0.683 0.768
yolo11s 1280 99.1 0.726 0.807

See Results for the downstream tracking effect.

A decision guide

If your target is... Start with
Apple silicon / a device with an NPU or GPU ONNX Runtime with the vendor provider (CoreML here): the largest speed-up at no accuracy cost
A plain CPU, latency-bound FP32 ONNX Runtime, matched input shape, then raise or lower input size before changing models
Memory- or download-bound (browser, microcontroller-class) Static INT8 with the decode graph in float
Accuracy-bound Raise the input resolution (cheaper than a bigger model for small pedestrians)
